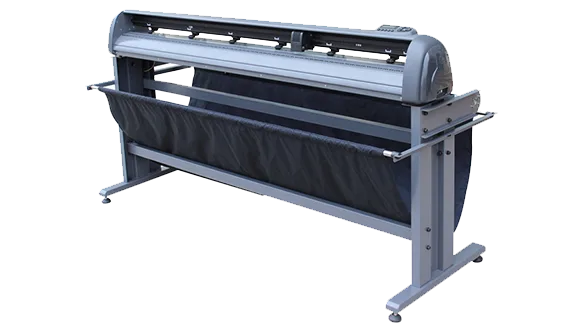

FOISON VINYL CUTTER

$1,295.00

  • Adopts high-precision steel axes,
  • Ultra pressure, capable of punching thick engineering materials
  • 10 silica gel buttons,
  • Easy-to-use and durable 4*8 high-resolution
  • LCD backlight display suitable for different work surroundings
  • Stable processing,
  • Low noise operation
  • User-friendly Design
  • C-12    $599.00
  • C-24    $899.00
  • C-48    $1,295.00
Compare
Categories: , Tag:

Description

FOISON VINYL CUTTER



FEATURES

  • Adopts high-precision steel axes, can prevent slipping while cutting 3m materials
  • Ultra pressure, capable of punching thick engineering materials
  • 10 silica gel buttons, easy-to-use and durable 4*8 high-resolution
  • LCD backlight display suitable for different work surroundings
  • Stable processing, low noise operation yet without zigzag while cutting
  • User-friendly Design allows adjusting the cutting force and working speed
  • Delicate, high strength aluminum alloy body C24 Vinyl Cutter
  • Stand (Optional)
  • USB interface to connection computer also support hot-plug
  • Support Windows xp/vista/2008/ win7 32 bits/64 bits Mac system



C-12

$599.00

C-24

$899.00

C48

$1,295.00





Applications





Model C12 C24 C48
Acceptable Media Width 415mm 720mm 1300mm
Max. Cutting Width 305mm/12Inch 620mm / 24Inch 1200mm/48Inch
Operating system Windows2000/XP/2003/win7/ 2003 x32/win7 x64 /
Mac OSX10.2.8 & above version
Interface RS232C, USB
Control Panel 10Silica gel buttons
Driver Digital DC, Step Motor, Micro-step Driver
Display 4*8 High-Resolution LCD
Drawing Instruction HP-GL, DMPL
Max. Cutting Speed 600mm/s
Max. Cutting Thickness 1mm
Pressure

50g~800g Adjustable

Mechanical Precision 0.025mm
Repeat Accuracy < ±0.1mm
Power Supply AC90~240V/50Hz~60Hz
Positioning Mode Bounded System, Random Original Point Setting
Work Mode Roller
Operating Environment Temperature:+5℃-35℃,Relative Humidity:30%-70%
Support Mode Desktop Desktop Stand
Net Weight 890*265*270mm 12kg 890*265*270mm 12kg 1530*265*270mm 32kg
Gross Weight 1015*380*395mm 16kg 1015*380*395mm16kg 1595*380*395mm 36.5kg
