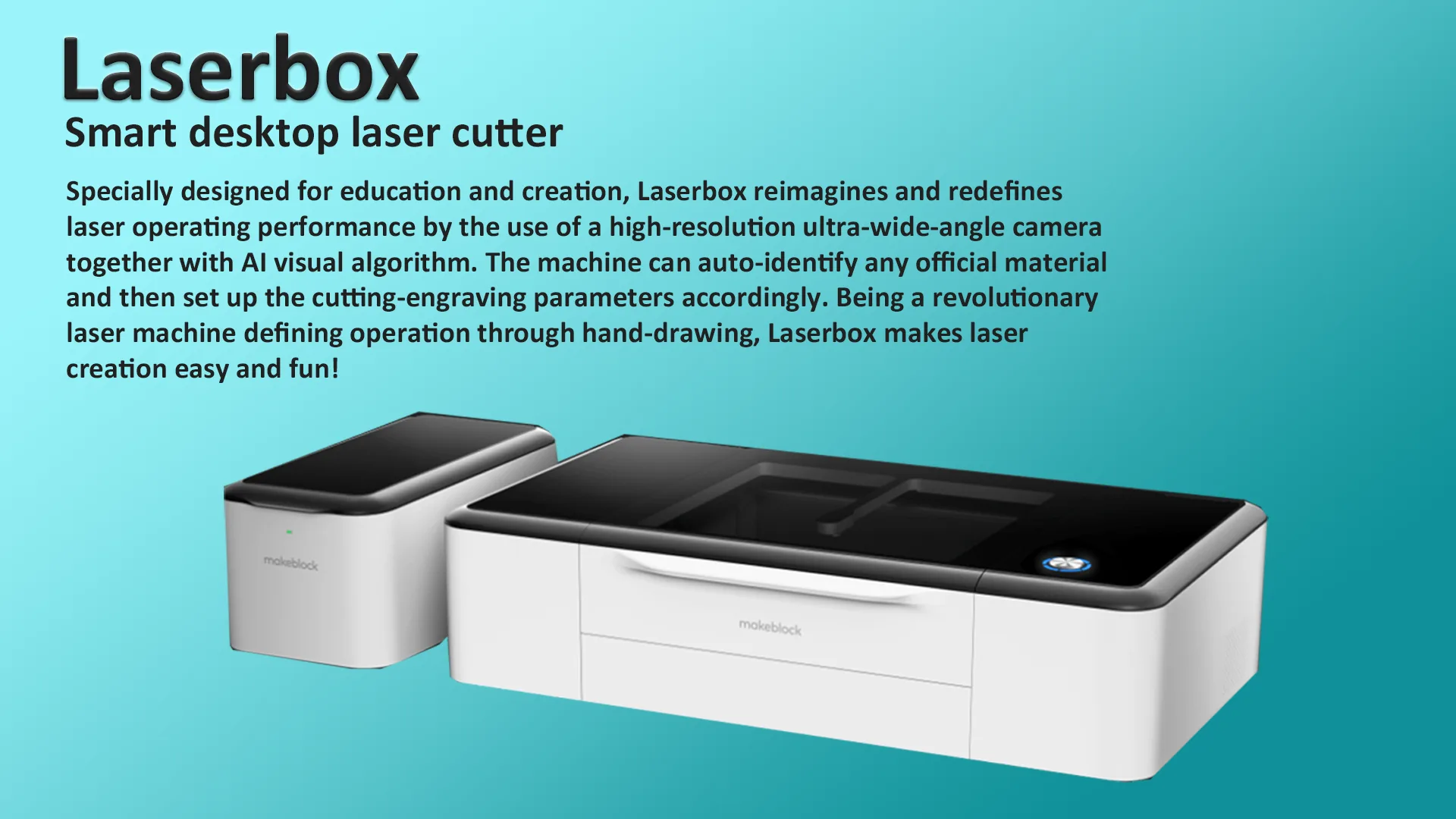

Laserbox

SPECIFICATION

LASER SYSTEM

• Laser Power 40W

• Laser Source CO₂ Glass Laser Tube

• Lifespan 6000~8000h

• Safety Guard Class I (FDA Certified)

MATERIALS PROCESSING

• Max. Cutting Depth 0.59” Basswood

• Max. Carving Speed 350mm/s

• Carving Precision 0.05mm

• Noise Rating  ≤70dB

WORK AREA

• Work Table Area  19.69” x 11.81”

• Max. Workpiece Height(with honeycomb tray) 0.87”

• Max. Workpiece Height(without honeycomb tray)  3.54”

• Work Table Surface  Black (Special surface finishing technique helps reduce burn marks or discoloration)

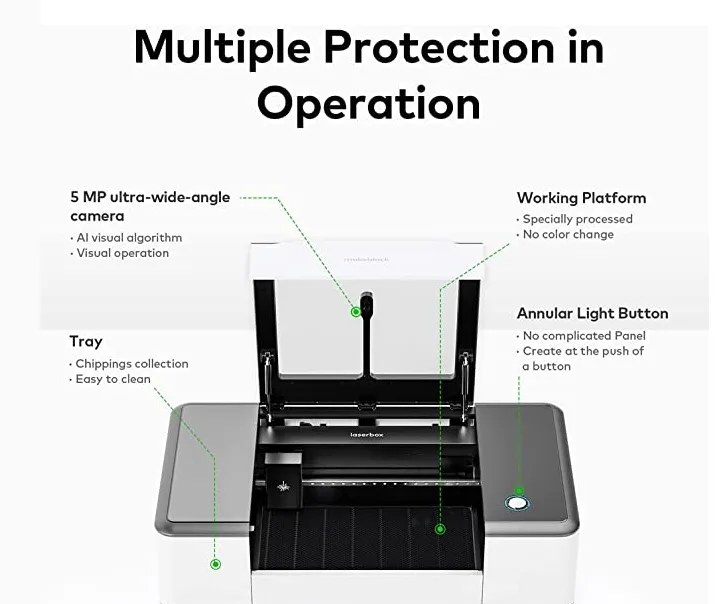

AI CAMERA INFORMATION

• Focus Mode  AI Visual AF , Material Recognition AF, Material Set-up AF

• Camera High-resolution Ultra-wide Camera

• Number of Pixels (Effective) 5MP

• Visible Area 19.29” x 11.42”

• Image Resolution 1000DPI

• Positioning AI Visual Positioning, (Error range ≤ 5mm)

WORK MODES

• Cooling Closed-loop self-contained internal liquid cooling system

• Air Assist Internal air assist with no external compressor hookup required

• Connection / Transmission Wi-Fi, USB, Ethernet

APPEARANCE OVERVIEW

• Operation Panel Push Button + Circular LED Indicator Light

• Frame Materials V0 Flame Retardant ABS / PC

• Connecting Interfaces USB cable, Ethernet cable, Power cable, Aviation Connector

• Outlet Diameter 63.5mm

SOFTWARE REQUIREMENTS

• Operating Systems Windows/macOS

• Control Software Laserbox

• Design Software AutoCAD, Solidworks, Inkscape, CorelDRAW, PowerPoint, Illustrator, Photoshop, Google AutoDraw, etc.

• Supported File Type SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc.

SOFTWARE SYSTEM REQUIREMENTS

• Operating Systems 64-bit Windows 7 or later  macOS Mojave10.13 or later

• Processor Core i3 or AMD A6 2.4Ghz

• Memory Space 4GB RAM

• Storage Space 5GB

ENVIRONMENTAL REQUIREMENTS

• Power 220/110VAC, 50/60Hz

• Work Consumption (without fan) 350W

• Nonoperating Temperature 0~45°C

• Relative Humidity 5~90°C

• Operating Ambient Temperature 0~35°C

SIZE AND WEIGHT

• Product Weight 48kg

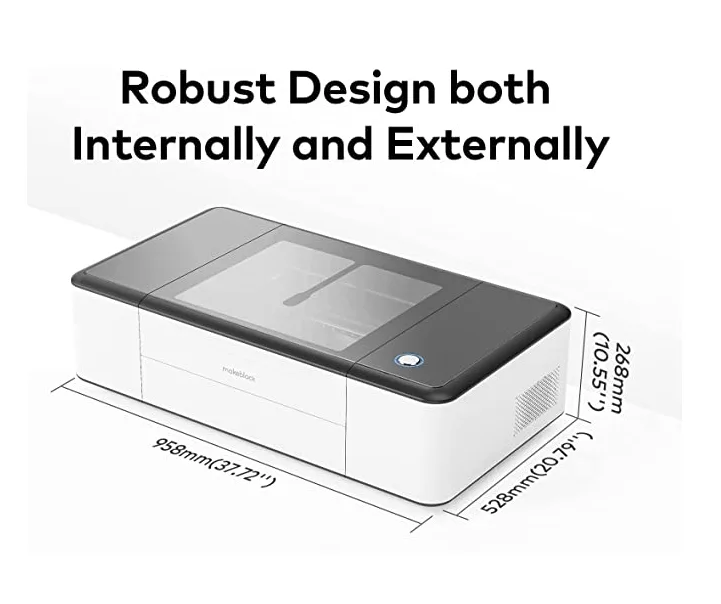

• Product Size (L x W x H) 37.72” x 20.79” x 10.55”

SUPPORTED ACCESSORIES

• Smart Smoke Purifier

• Exhaust Fan

• Rotary Attachment
