LD-Series Laser Decorator

$11,495.00

LD-300 Laser Decorator

Personalize plastic, leather and packaging to create high-value custom products at a low-running cost

  • Add reflective graphics in a myriad of textures and colors to leather cases, boxes, notepads and more
  • Personalize multiple giftware items and larger leather items with expanded machine production
  • Uses inexpensive foil material to produce unique, reflective graphics
  • A safe and clean machine that perfectly fits your office, studio, or home environment
  • Includes intuitive design software for your Windows PC
Add to Wishlist
Compare
Category:

Description

Additional Features of the LD-80 and LD-300

Includes Easy-to-Use Software
You don’t need to be a graphics expert to design and output artwork in METAZAStudio Software.
Vector Graphics and Text
Import and edit a wide range of files in METAZAStudio and get detailed text and image results with the LD-80 and LD-300.
No Hunger for Power
Requires no special electrical set-up and works with standard wall sockets — does not need large amounts of heat or pressure.
Variable Data
Input your serial data, including numbers and names to produce items for multiple customers.
Air VolumeA Laser Clean Machine
Runs safely and cleanly with no debris or gas leakage.

So Many Profitable Personalisation Opportunities





Coloured foils to decorate and personalise items with LD-300

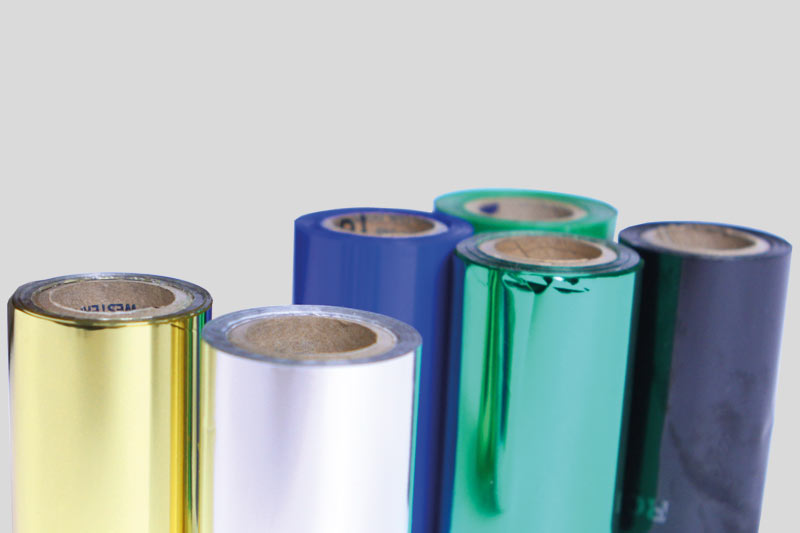

Metallised Foil

Inexpensive hot-foil stamp material is available in a range of colours and types and combines with the LD-80 or LD-300 for unique customisation results.




Imprint directly onto natural leather with the LD-300

With the LD-300 it’s possible to foil transfer onto soft plastics, paper and leather or to imprint directly onto natural leather1 for luxurious customised finishes. Create unique, high-precision effects, including detailed images, crisp text, intricate patterns and accurate logo reproduction.

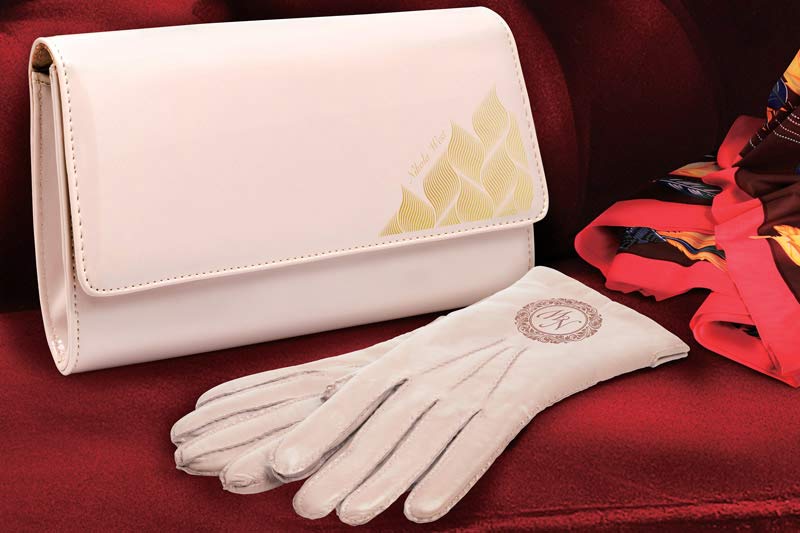

Imprint directly onto items like gloves and leather journals




LD-300 work area accommodates large items for higher revenue applications and dramatically increased productivity

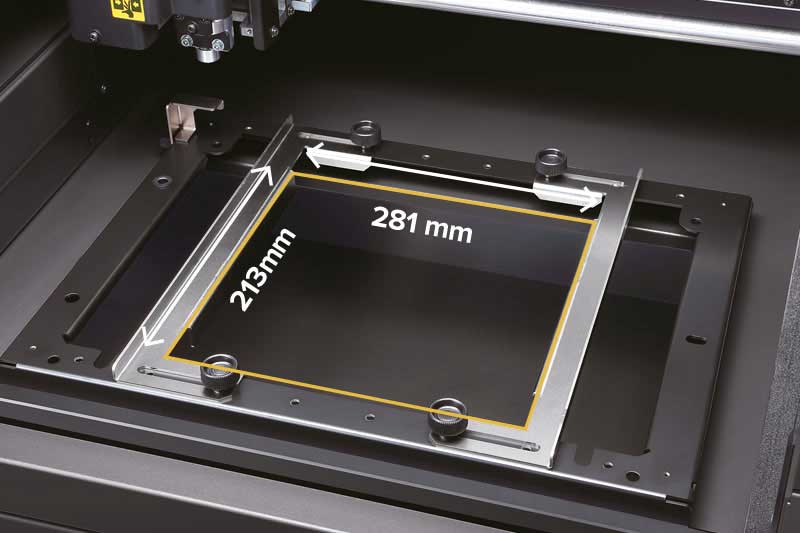

Increased working area with the LD-300

The working area of LD-300 is 305mm x 230mm and can accommodate objects up to 50mm in thickness. Removing the bed, even larger items up to 216mm thick, such as handbags and product packaging, can be accommodated with an imprint area of (max) 281mm (W) x 213mm (D).
(Photo shown is with base table removed)

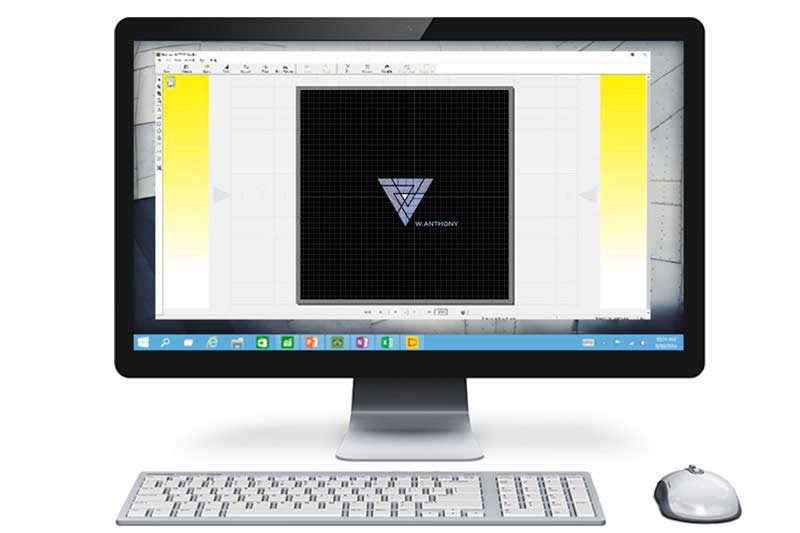

METAZAStudio Software Included with LD-300 and LD-80

Powerful METAZAStudio Software Included

Both the LD-80 and the LD-300 can produce stunning graphics and crisp text using bundled METAZAStudio software. And you don’t need to be a graphics expert to design and output artwork as the software is easy to use.

Choosing the Right LD for your Business

Available in a choice of sizes and abilities to meet your laser decoration needs

 LD-80LD-300

Dimensions

286 (W) x 383 (D) x 308 (H) mm

616 (W) x 591 (D) x 496 (H) mm

Imprint max area80 (W) x 80 (D) mmFor objects up to 50mm (H): 305 (W) x 230 (D) mm
For objects up to 216mm (H): 281 (W) x 213 (D) mm
Recommended print area50 (W) x 50 (D) mmFor objects up to 50mm (H): 275 (W) x 196 (D) mm
For objects up to 216mm (H): 281 (W) x 213 (D) mm
Imprintable material4
Acrylic Yes Yes
Polycarbonate Yes Yes
Polypropylene Yes Yes
Polystyrene Yes Yes
ABS Yes Yes
Polyurethane  Yes
PVC  Yes
Paper (Woodfree, Art paper, Coated paper) Yes
Leather  Yes

Specification

ModelLD-80*LD-300*
Imprintable materials**Acrylic, Polycarbonate, Polypropylene, Polystyrene and ABSAcrylic, Polycarbonate, Polypropylene, Polystyrene, ABS, Leather, Polyurethane, PVC and Paper (Woodfree paper, Art paper, Coated paper).
Loadable material width and height/thicknessMax. 100 (W) x 200 (D) x 20 (H) mm
or 180 (W) x 100 (D) x 20 (H) mm 		With base table:  323 (W) x 267 (D) x 50 (H) mm
Without base table: 281 (W) mm x 213 (D) x 216 (H) mm
Design optionsVector/outline, region fill (scan line, island fill), text, illustrationVector/outline, region fill (scan line, island fill), text, illustration
Imprint areaMax.

80 (W) x 80 (D) mm

For objects up to 50mm (H): 305 (W) x 230 (D) mm
For objects up to 216mm (H): 281 (W) x 213 (D) mm
 Recommended: 50 (W) × 50 (D) mm For objects up to 50mm (H): 275 (W) x 196 (D) mm
For objects up to 216mm (H): 281 (W) x 213 (D) mm
Resolution 353 dpi (text), 1058 dpi (vector)318 dpi (text), 1270 dpi (vector)
Direction of transcriptionUnidirectional imprinting or bidirectional imprinting
(selectable with Windows driver)		Unidirectional imprinting or bidirectional imprinting (selectable with Windows driver)
Print speed 24 mm/s24 mm/s (default),  48 mm/s (maximum)
InterfaceUSBUSB
Power requirementsDedicated AC adapter:AC 100 to 240 V ±10%, 50/60HzAC 100 to 240 V ±10%, 50/60Hz
Main unit:DC 19V, 1.0ADC 19V, 1.0A
Power consumptionApprox. 14WApprox. 23W
Acoustic noise level70 dB (A) or less)70 dB (A) or less
Environment Temperature10 to 30 °C (50 to 86 °F)11 to 30 °C (50 to 86 °F)
 Humidity 35 to 80% (no condensation)35 to 80% (no condensation)
 Dimensions286 (W) x 383 (D) x 308 (H) mm616 (W) x 591 (D) x 496 (H) mm
Weight12 kg

46 kg

Light sourceFor imprinting (foil transfer)Class 4 laser*; wavelength:450nm; dispersion: 23 degrees; pulse width repeatability: 167.5 μ sec, 4kHz; max. output:1.6WClass 4 laser*; wavelength: 450nm; dispersion: 23 degrees; pulse width and repeatability: 137.5 μ sec, 4kHz; max. output:1.6W
For positioningClass 1 laser, wavelength: 655nm Class 1 laser, wavelength: 655nm
Safety devicesInterlockWhen the cover opens, the laser power supply turns offWhen the cover opens, the laser power supply turns off
CoverLight-blocking cover Light-blocking cover
Included itemsSoftware Package CD,  AC adapter, power cable, USB cable, setup guide, material retainer, film retainer, etc.Software Package CD, AC adapter, power cable, USB cable, setup guide, material retainer, film frame, etc.

* This product is a Class 1 laser device, utilising an interlocked full cover structure. Complies with IEC 60825-1 Ed. 3.0 (2014-05) and Ed. 2.0 (2007-03).
** Successful text and image results depend on the correct combination of foil and media. For best results, test foil transfer prior to final production.
Specifications, designs and dimensions listed may be subject to change without notice.

System requirements for USB connection
Operating systemWindows®7 or better (32-bit or 64-bit)
USB cableUse the included USB cable

_________________________________________________________________________________________________________________________________________________

 LD-80  LD-300
Item ModelDescription  ModelDescription
Replacement lens set*HL-801 lens HL-3001 interchangeable lens
Thermal transfer film*AL-80 135 mm x 135 mm size, 5 sheets AL-300A4 size, 10 sheets
Foil for laminates – GoldDF-8079LG  80mm X 120M 1 roll DF-8079LG 80mm X 120M 1 roll
Foil for laminates -SilverDF-8047LS 80mm X 120M 1 roll DF-8047LS80mm X 120M 1 roll
Foil for plastics – GoldDF-8079PG 80mm X 120M 1 roll DF-8079PG80mm X 120M 1 roll
Foil for plastics -SilverDF-8047PS 80mm X 120M 1 roll DF-8047PS80mm X 120M 1 roll

Accessories

LD-80  LD-300
Item ModelDescription  ModelDescription
Replacement lens set*HL-801 lens HL-3001 interchangeable lens
Thermal transfer film*AL-80 135 mm x 135 mm size, 5 sheets AL-300A4 size, 10 sheets
Foil for laminates – GoldDF-8079LG  80mm X 120M 1 roll DF-8079LG 80mm X 120M 1 roll
Foil for laminates -SilverDF-8047LS 80mm X 120M 1 roll DF-8047LS80mm X 120M 1 roll
Foil for plastics – GoldDF-8079PG 80mm X 120M 1 roll DF-8079PG80mm X 120M 1 roll
Foil for plastics -SilverDF-8047PS 80mm X 120M 1 roll DF-8047PS80mm X 120M 1 roll

* Laser lens and thermal transfer film are consumables and have a finite lifespan
