Description
A busy, high-volume print shop needs a printer that can deliver quality output at high speeds.
Meet the new EJ-640 large-format color printer. With dual staggered print heads and a rigid new industrial design, productivity and quality are built in. So are big-time savings. The EJ-640 runs with new Roland DG EJ INK that costs up to 35% less than the competition. The result? High-volume, low-maintenance printing and bold, exciting colors with higher profit margins.

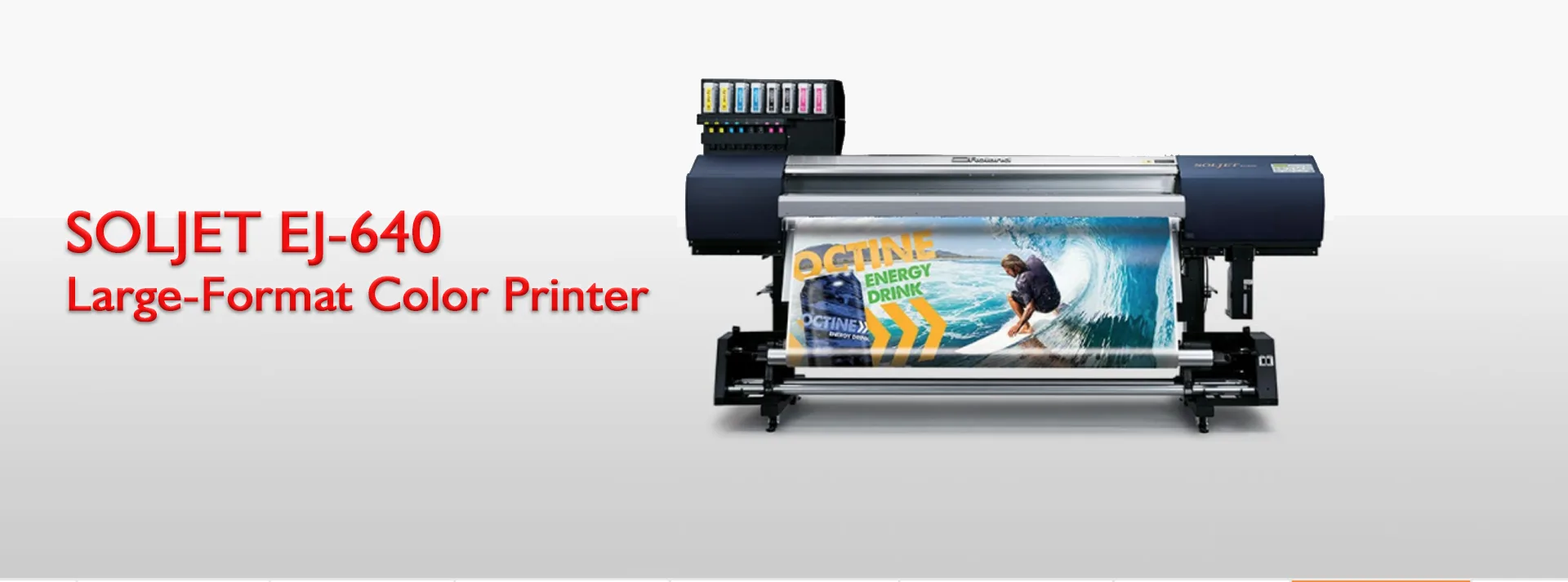

Gain an Edge With the SOLJET® EJ-640 Large Format Digital Printer
More than a job, it’s your reputation coming out of that printer. Which is precisely why the EJ-640 large format color printer is designed to ensure quality results even at high speeds:
- Dual eight-channel Piezo inkjet heads house 180 nozzles per channel
- Offset-positioned print heads move in a large print swath for increased production and follow a mirrored pattern to reduce the chance of banding
- Advanced media feed allows media to feed through the printer accurately at high speeds
- Rigid industrial design ensures quality output
- Patent-pending Roland Intelligent Pass Control system controls dot placement between passes, producing exceptional solid colors and photographic image quality
- Variable dot control achieves smooth gradations and deep image saturation on a broad range of media
Produce Rich, Vibrant, Durable Color for Less
Count On a Quick-Dry Finish
The EJ-640 dries prints quickly – even in high-speed mode – for immediate finishing, installation or collection by the take-up system.
The integrated tri-heater system features:
1 Pre-heater to improve media receptiveness
2 Print heater to accelerate ink fastness and brightness
3 Dryer to accelerate drying and ensure greater productivity and scratch resistance
An included dryer/blower unit evenly dries large prints and enhances image saturation at high speed.
Includes New VersaWorks 6
- New user interface with clean and simple, drag-and-drop functionality
- Now with five print queues and five hot folders— combined with the ability to store unlimited queue settings
- Create cut data directly in the RIP— change vector data into cut line data
- Keep your color output consistently the same across multiple printers with new color matching tools— transfer color values to matching Roland DG device
- Variable data printing
- Native 64-bit processing— nest up-to 86 jobs and other increased capabilities
- Advanced cropping, tiling and nesting options
Specifications
| Printing technology | Piezoelectric inkjet | ||
| Media | Width | 10.2 to 64 in. (259 to 1625 mm) | |
| Thickness | Maximum 39 mil (1.0 mm) with liner | ||
| Roll diameter | Maximum 8.3 in (210 mm) | ||
| Roll weight | 88 lbs (40 kg) | ||
| Core diameter *1 | 3 in (76.2 mm) or 2 in (50.8 mm) | ||
| Printing Width *2 | Max. 63.6 in. (1615 mm) | ||
| Ink cartridges | Type | Roland DG EJ INK | |
| Capacity | 1,000-cc cartridge | ||
| Colors | CMYKLcLmLk | ||
| CMYKKYMC | |||
| Print resolution | Dots per in | Maximum 1,440 dpi | |
| Print Modes | Resolution | Pass | Speed |
| 4 COLOR CMYK | |||
| Max Speed (Banner) | 360×360 | 1 | 1098 ft2/h (102 m2/h) |
| Billboard (Banner) | 540×360 | 2 | 678 ft2/h (63 m2/h) |
| High Speed (Banner) | 540×360 | 4 | 334 ft2/h (31 m2/h) |
| Standard (Banner) | 720×720 | 5 | 258 ft2/h (24 m2/hr) |
| High Quality (Banner) | 720×1440 | 9 | 140 ft2/h (13 m2/h) |
| High Speed (Vinyl) | 360×720 | 4 | 323 ft2/h (30 m2/h) |
| Standard (Vinyl) | 720×720 | 6 | 215 ft2/h (20 m2/hr) |
| 720×720 | 8 | 161 ft2/h (15 m2/h) | |
| High Quality (Vinyl) | 720×1440 | 12 | 108 ft2/h (10m2/h) |
| 7 COLOR CMYKLcLmLk | |||
| High Speed (Banner) | 540×360 | 8 | 172 ft/2/h (16 m2/h) |
| Standard (Banner) | 720×720 | 10 | 129 ft2/h (12 m2/h) |
| High Quality (Banner) | 720×1440 | 18 | 65 ft2/h (6 m2/h) |
| High Speed (Vinyl) | 360×720 | 8 | 161 ft2/h (15 m2/h) |
| Standard (Vinyl) | 720×720 | 12 | 108 ft2/h (10m2/h) |
| High Quality (Vinyl) | 720×1440 | 20 | 59 ft2/h ( 5.5 m2/h) |
| Distance accuracy *3 *4 | Error of less than ±0.3% of distance traveled, or ±0.3 mm, whichever is greater | ||
| Media heating system *5 | Print heater | Setting range for the preset temperature: 30 to 45ºC (86 to 112ºF) | |
| Dryer | Setting range for the preset temperature: 30 to 55ºC (86 to 131ºF) | ||
| Connectivity | Ethernet (10BASE-T/100BASE-TX, automatic switching) | ||
| Power-saving function | Automatic sleep feature | ||
| Power requirements | AC 100 to 120 V ±10%, 11 A, 50/60 Hz or | ||
| AC 220 to 240 V ±10%, 5.5 A, 50/60 Hz | |||
| Power consumption | During operation | 1450 w | |
| Sleep mode | 75 w | ||
| Acoustic noise level | During operation | Temperature: 15 to 32ºC (59 to 90ºF) [20ºC (68ºF) or more recommended], Humidity: 35 to 80%RH (no condensing) | |
| During standby | Temperature: 5 to 40ºC (41 to 104ºF), humidity: 20 to 80%RH (no condensation) | ||
| Dimensions (with stand) | 108in (2,750mm ) W x 31in (785mm) D x 59.9in (1,520mm) H | ||
| Weight (with stand) | 485 lb (220 kg) | ||
| Included items | Dedicated stands, power cord, media clamps, media holders, replacement blade for separating | ||
*1 The media holder of this machine is exclusively for media with a paper tube core inner diameter of 3 inches. To use a 2 inch media core, please use the optionally available media flanges.
*2 all speeds Bi-Directional. The length of printing is subject to the limitations of the program.
*3 Using Roland specified media, loaded correctly, temperature: 25 ºC (77ºF), humidity: 50 %RH, all pinch rollers are used, 25 mm or more for both right and left margins and 35 mm or more front margin, excluding expansion or contraction of the media. and all correction and adjustment functions of this machine have been made properly. Not assured when the print heater or dryer is used.
*4 Using Roland specified media, print travel of 1m
*5 Warm-up is required after powerup. This may require 5 to 20 minutes, depending on the operating environment. The preset temperature may fail to be reached depending on the ambient temperature and media width.
Use in an operating environment with this range.
| Roland VersaWorks 6 System Requirements | ||
| Operating system | Windows® 10 (32/64-bit) | |
| Windows® 8.1 (32/64-bit) | ||
| Windows® 7 Professional / Ultimate (32/64-bit) | ||
| CPU | Intel® Core™2 Duo, 2.0 GHz or faster recommended | |
| RAM | 2 GB or more recommended | |
| Video card and monitor | A resolution of 1,280 x 1,024 or more recommended | |
| Free hard-disk space | 40 GB or more recommended | |
| Hard-disk file system | NTFS format | |
| Optical drive | DVD-ROM drive | |
| Other requirements | Ethernet or USB port Internet connection and web browser to use Roland@NET | |
Please note: Considering that you will be using software such as Illustrator, we recommend that you use as high performance computer as possible to reduce RIP processing time. We also recommend using a hard disk that has large enough capacity, as print files are often tens of GB in size (or larger) when data is high resolution.
* Roland VersaWorks 6 is a 32-bit application, which runs on 64-bit Windows® with WoW64 (Windows 32-bit on Windows 64-bit).
| Compatible Application Software | |||
| Adobe® Illustrator® 10, CS, CS2, CS3, CS4, CS5. CS6 | |||
| CorelDRAW® 11, 12, X3, X4, X5 |
