Intelligent, Unattended Milling
The DWX-52DCi dental milling machine now comes with performance visualization software and other intelligent updates. Power it on, let it go, and automatically mill numerous dental restoration jobs with complete unattended confidence.
- Increase productivity overnight and during the weekends with a dental mill that continues working, even when your lab is closed.
- Load up-to six different 98.5mm disks with an easy-to-use adapter system and mill material discs in succession– an optical barcode system optimizes workflow to manage multiple shades of zirconia and PMMA materials.
- An Automatic Disc Changer (ADC) enables continuous milling of traditional materials as well as gypsum, PEEK, glass fiber reinforced resin, composite resin and CoCr sinter metal material discs and blocks.
It also optimizes user workflow by milling different shades of zirconia at once. - Mill jobs without stopping production with an Automatic Tool Changer (ATC) that features up-to 15 tools that swap-out automatically
- A convenient built-in storage drawer combines with an included adapter rack for efficient organization and storage.
- New DWindeX2 performance visualization and monitoring software is now compatible with all DGSHAPE DWX-52D series dry mills as well as the DWX-42W. The enhanced dashboard feature allows users to monitor and collect data for multiple DGSHAPE DWX mills from one location allowing laboratories to run a more efficient and productive business overall.
- Six pre-loadable material adapters that combine with an included adapter rack for efficient organization and storage— cue up your zirconia, glass fiber reinforced resin, composite resin CoCr sinter metal and other material discs

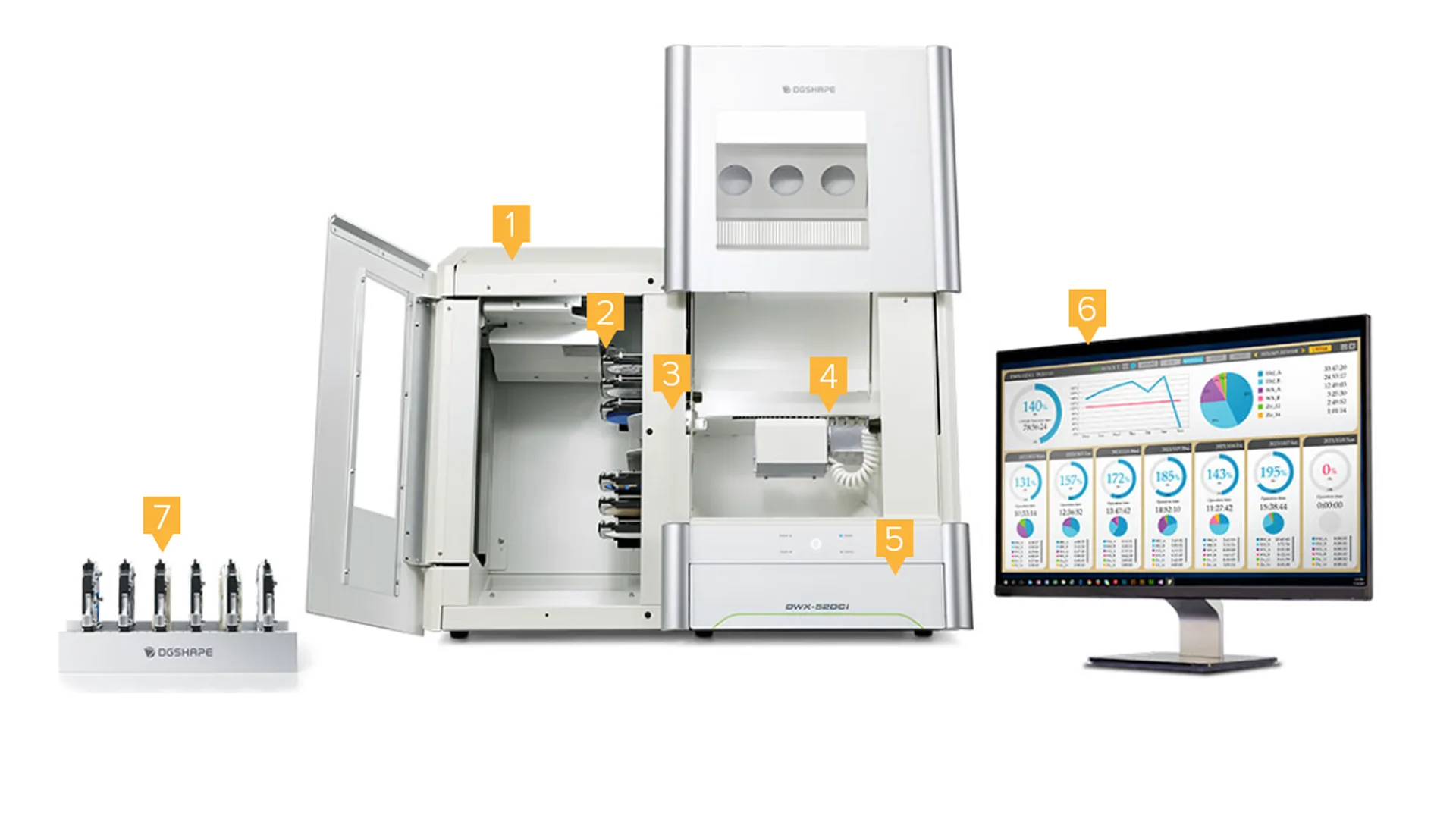

Additional Features
 | Six Adapters Included For an easy set-up and operation, right out-of-the-box |
 | Intelligent Tool Changer (ITC) Knows which tool to automatically swap out when tools have reached their designated lifespan |
 | 5-axis Milling Ball screw-driven system with 5-axis positioning or simultaneous operation |
 | Virtual Machine Panel (VPanel) A user-friendly VPanel enables easy production and device monitoring – including advanced email notification |
 | Ionizer Reduce dust and static when working with PMMA |
 | Clean Milling Environment A powerful auto-on internal dust collection system and automatic cleaning brush ensure a clean milling environment |
 | Air Pressure Automatically changes air pressure based on the CAM material data |
 | Additional Storage Store tools, jigs, adapters and more in a handy, built-in storage draw |
Specifications
| DWX-52DCi | ||
| Cuttable material | Zirconia, Wax, PMMA, Composite resin, PEEK, Gypsum, Fiber reinforced resin, soft milling CoCr sintering metal | |
| Loadable workpiece shape | Step section: | 98.5 mm (diameter), height 10 mm |
| Body section: | 95 mm (diameter), height max. 35 mm Pin diameter: 6 mm | |
| Pin diameter: | 6 mm | |
| Loadable workpiece weight | Up to 850 g | |
| Number of adapters housed | 6 | |
| Operating speed | XYZ axis: | 0.24 to 70.9 in./min.(6 to 1,800 mm/min.) |
| Spindle motor | Brushless DC Motor | |
| Spindle speed | 6,000 to 30,000 rpm | |
| Rotary axis travel angle | A: | ±360° |
| B: | ±30° | |
| Number of burs housed | 15 | |
| Attachable bur | Shank diameter: | 4 mm |
| Length: | 40 to 55 mm | |
| Compatible compressed air | 0.2 MPa | |
| Interface | USB | |
| Control command set | RML-1, NC code | |
| Power requirements | AC 100 V to 240 V ±10%, 50/60 Hz, 2.0 A (overvoltage category II, IEC60664-1) | |
| Power consumption | Approx. 200 W | |
| Operating noise | During operation: | 70 dB (A) or less (when not cutting), |
| During standby: | 45 dB (A) or less | |
| External dimensions | Width x Depth x Height: | 34.6 x 26.0 x 23.6 in. (880 x 660 x 600 mm) |
| Weight: | 105 kg (231.5 lbs.) | |
| Installation environment | Indoor use, Altitude: Up to 2,000m (6,562 ft.), Temperature: 5 to 40 ℃ (41 to 104°F), Humidity: 35 to 80 % (no condensation), Ambient pollution degree: 2 (as specified by IEC 60664-1), Short-term temporaty overvoltage: 1440 V, Long-term temporaty overvoltage: 490 V | |
| Included items | Power cord, Power plug adapter, USB cable, Manuals, Roland DG Software Package CD, Detection pin, Automatic correction jig, Pin-type material adapter, Hexagonal driver, Spanner, Milling bur holders, Milling bur positioner, Dust collection hoses, Dust collection hose adapter, Regulator, Cleaning tool, Option adapter labels, Material adapters | |
System requirements for USB connection
| Operating system (OS)* | Windows® 7/8/8.1/10 (32 or 64 bit) |
| Optical drive | CD-ROM drive |
| USB cable | Use the included USB cable |
Options
| Item | Model | Description | ||
| Pin-type material adapter | ZV-52DC | Pin-type material jig for replacement | ||
| Material adapter | ZMA-52DC | Material adaptor for replacement | ||
| Cleaning tool | ZCT-4D | Cleaning tool for replacement | ||
| Milling bur holder | ZBH-4D | Milling bur holder for replacement | ||
| Spindle unit | ZS-4D | Spindle unit for replacement | ||
| Collet | ZC-4D | Collet for replacement | ||
| Spindle belt | ZSB-170 | Spindle belt for replacement | ||
