DWX-52D

$25,450.00

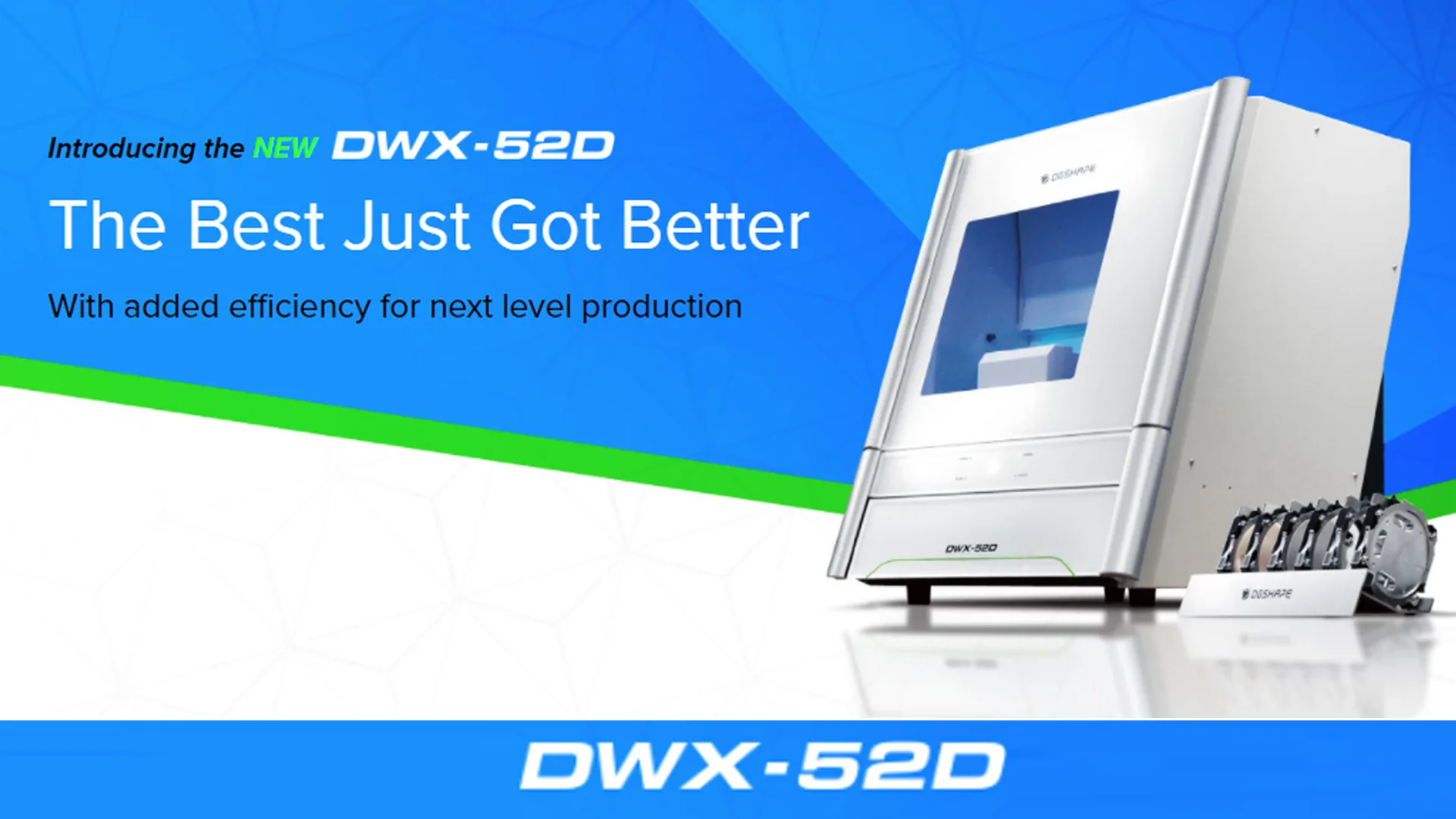

DWX-52D 5-Axis Dental Milling Machine

Next level production to meet the needs of growing lab businesses

  • Precision 5-axis milling of zirconia, wax, PMMA, composite resin, glass fiber reinforced resin, composite resin, CoCr sinter metal and more

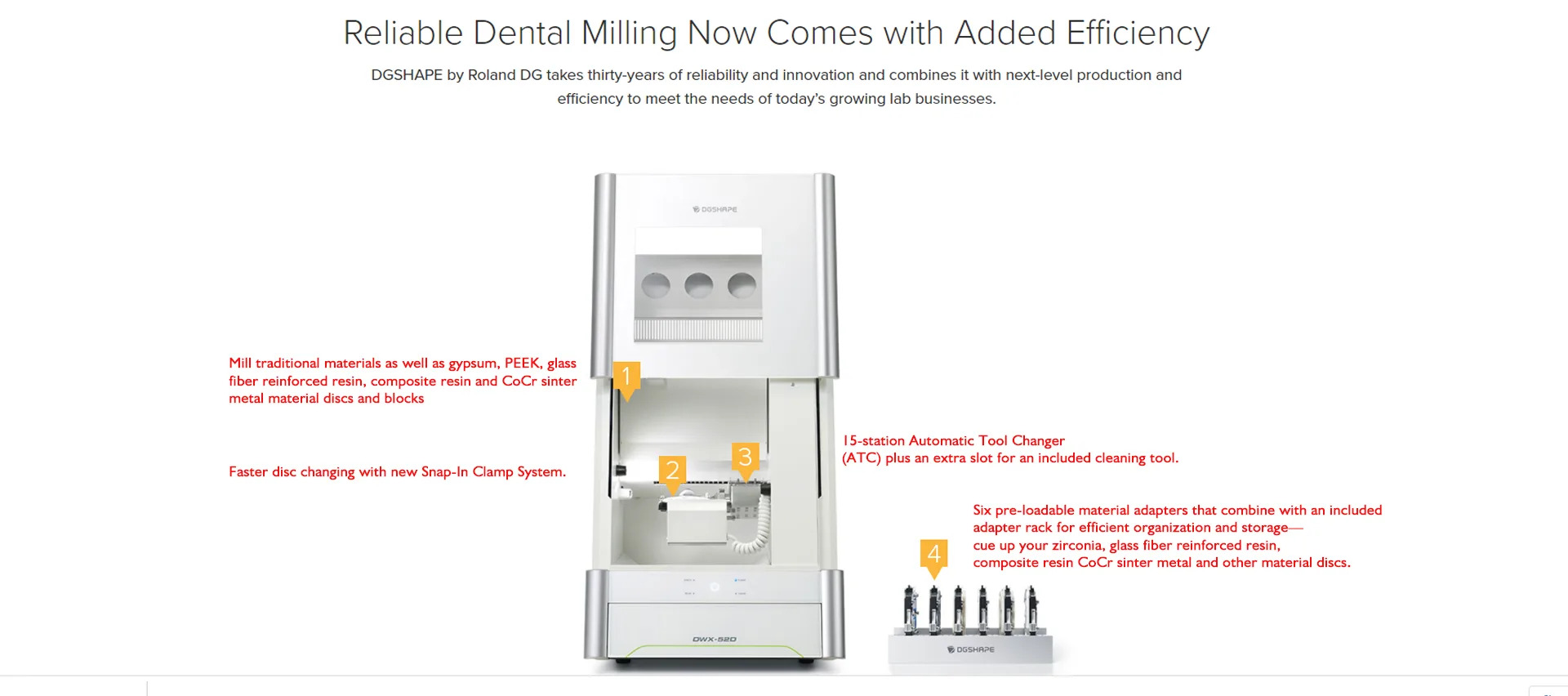

  • Automatic Tool Changer (ATC) with up-to 15 burs that swap-out automatically
  • User-friendly, one-button operation
  • Better disc handling, improved tool management and other enhanced features
Compare
Category:

Description

Additional Features

5-axis Milling
Ball screw-driven system with 5-axis positioning or simultaneous operation
Intelligent Tool Changer (ITC)
Knows which tool to automatically swap out when tools have reached their designated lifespan
Virtual Machine Panel (VPanel)
A user-friendly VPanel enables easy production and device monitoring – including auto calibration function
Ionizer
Reduce static and dust when working with PMMA
Clean Milling Environment
Mill clean with powerfully efficient internal dust collection and an automatic cleaning brush
Air VolumeAir Pressure
Air pressure is automatically adjusted based on the CAM material data

Intelligent Tool Control

A feature of the simplified VPanel operation is an Intelligent Tool Control (ITC) function that instinctively swaps out tools directly from their position when they have reached their user-defined lifespan with a designated “partner tool” without needing to pause production. The ITC has been updated for the DWX-52D to allow for user-defined setup– users can now assign burs in any figuration they want in the Automatic Tool Changer (ATC).

DWX-52d v-panel software

5-Axis Milling

A smooth and steady ball screw-driven system produces exceptional results. The DWX-52D simultaneously rotates and tilts discs for deep undercuts— milling large arch restorations and other full-mouth prosthetics with ease.

User Replaceable Spindle

The DWX-52D features a spindle that can be replaced in a matter of minutes, without needing to call out a technician. No special tools, testing or training is required.

A Clean, Precise and Flexible Milling Solution




Simplified Operation

The DWX-52D replaces the complicated controls associated with CNC milling with an intuitive Virtual Machine Panel (VPanel) that automatically swaps out used burs (ITC function), conducts machine diagnostics, and provides one-touch device calibration.




Automatic Cleaning

Load the included brush tool into the Automatic Tool Changer (ATC) and set-it-up to automatically sweep away zirconia dust and other debris for a cleaner milling surface. The DWX-52D also features an internal auto-start dust collection system to maintain a clean machine, and an ionizer to reduce static when milling PMMA.




Open Architecture

The DWX-52D doesn’t tie users to a specific software or proprietary control source. Users have the freedom to work with their choice of the latest CAD/CAM software, scanners and materials.



*Contact your Roland DG authorized dealer for the open architecture set-up that’s right for you.

Specifications 

Cuttable materialZirconia, Wax, PMMA, Composite resin, PEEK, Gypsum, Glass fiber reinforced resin, Chrome Cobalt sintered metal
Loadable workpiece shapeExternal Diameter98.5 mm
Max Height60 mm
Step10 mm
Pin Type Diameter6 mm
Loadable workpiece weightUp to 850 g
Number of adapters housed6
Operating speedXYZ axis:6 to 1,800 mm/min. (0.24 to 70.9 in./min.)
Spindle motorBrushless DC Motor
Spindle speed6,000 to 30,000 rpm
Rotary axis travel angleA axis±360°
B axis±30°
Number of burs housed15
Attachable burShank diameter4 mm
Length40-55 mm
Compatible compressed air0.05/0.2 MPa (Automatic switch)
InterfaceUSB
Control command setRML-1, NC code
Power requirementsAC 100 V to 240 V ±10%, 50/60 Hz, 2.0 A (overvoltage category II, IEC60664-1)
Power consumptionApproximately 200 W
Operating noiseDuring operation70 dB(A) or less (when not cutting)
During standby45 dB(A) or less
External dimensionsWidth 19.5 in (495 mm)
Depth26.0 in (660 mm)
Height23.6 in (600 mm)
Weight 147.7 lbs. (67 kg)
Installation environmentAltitude Up to 6,562 ft. (2,000m)
Temperature41 to 104 °F
5 to 40°C
Humidity 35 to 80% (no condensation)
Ambient pollution degree 2 (as specified by IEC 60664-1)
Short-term temporary overvoltage 1,440 V
Long-term temporary overvoltage 490 V
Included items Power cord, power plug adapter, USB cable, manuals, Roland DG software package CD, detection pin, automatic correction jig, pin-type material adapter, hexagonal driver, spanner, milling bur holders, milling bur positioner, dust collection hoses, dust collection hose adapter, regulator, cleaning tool, option adapter labels, material adapters, material adapter rack
Operating system Windows® 7/8/8.1/10 (32 or 64 bit)
USB cable Use the included USB cable

Info

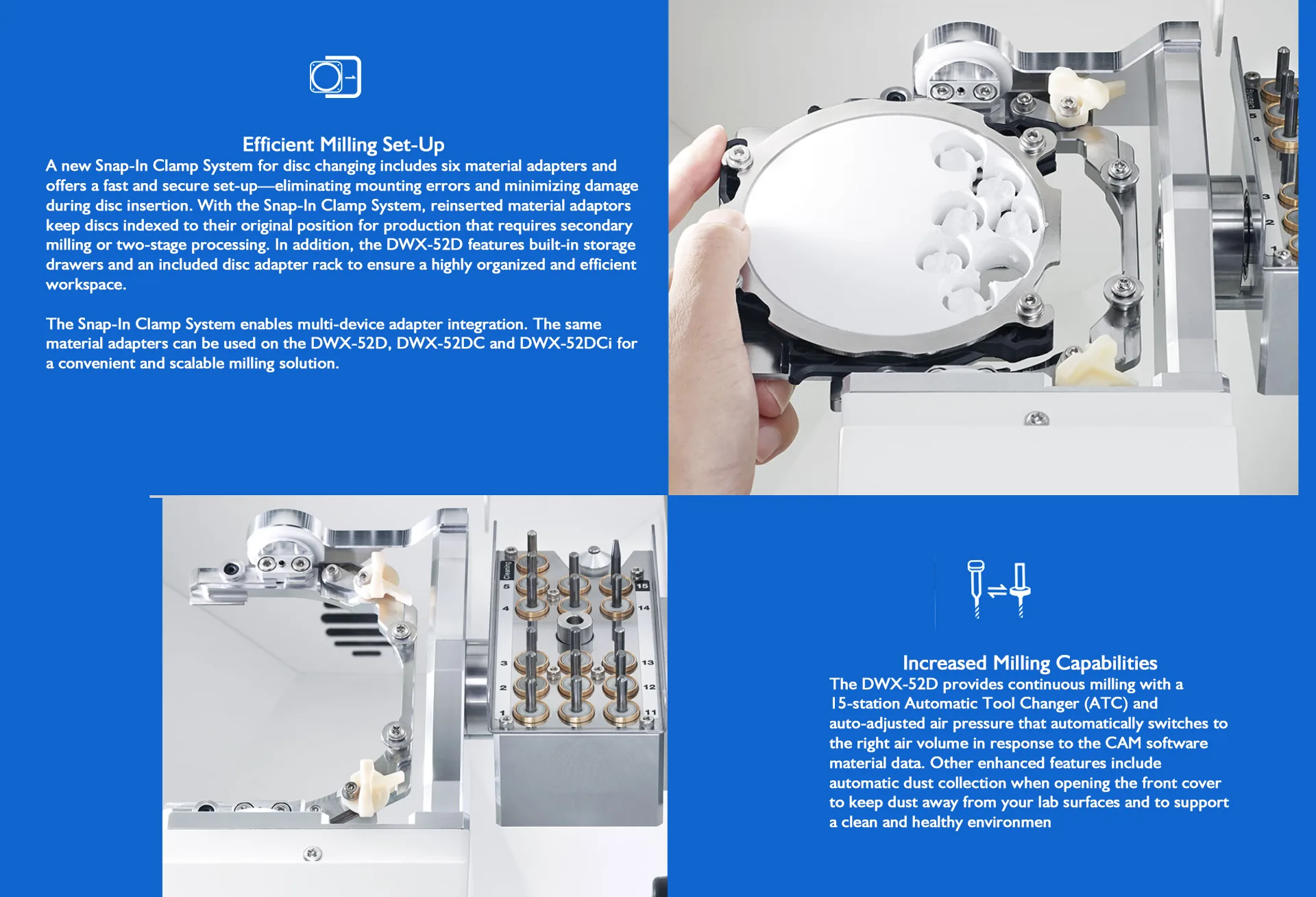

Keep materials organized and ready for production with an included disk adapter rack
Included pin adapter for holding up to eight pin-type blocks
Carbide, diamond and hybrid milling tools are available on the Roland Store (0.3mm, 0.6mm, 1.0mm, 2.0mm)
Add additional adapters for a quicker set-up and a well-organized workflow
Clear away material waste during milling with optional BOFA DustPro vacuum unit
C-Clamp type adapter expands DWX-52D functionality with a 90-degree milling range— allowing users to mill full arch cases and providing greater overall esthetics
