Description
NEW DWindeX2 Remote Management of All
Current DGSHAPE Dental Mills from One Location
Enhance your business’ ROI and minimize downtime with DWindeX2 performance visualization software that allows for remote monitoring of all DWX-42W and DWX-52D series mills from one location. The new, enhanced dashboard with artificial intelligence (AI) allows for remote monitoring of mill performance, productivity, mill maintenance, tool usage and more.
Specially Designed Spindle

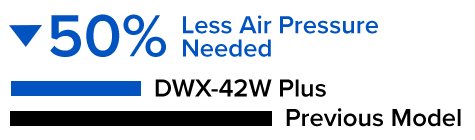

- 50% LESS Air Pressure Needed
- Designed and built by DGSHAPE— using over 35-years of cutting-edge engineering excellence
- A robust, all-metal spindle offers solid performance and maximum efficiency
- Doesn’t require a high-volume compressor— perfect for in-clinic labs
Increase Your Milling Capacity
With the 6-Pin Adapter
Upgrade your machine capacity from three-to-six jobs with the 6-pin adapter (SKU#ZV-42W) that was engineered for use with the DWX-42W and 14 mm pin-type blocks. Mill up-to six pin-type blocks at once with this easy-to-install accessory.
Compatible with the latest version of Millbox software* and designed to be used interchangeably with the AK-1 Abutment Kit, the 6-pin adapter is yet another accessory addition to the DWX-42W wet mill to increase production and profit.
*compatible with Millbox software version 2020 or later
Elevated Performance
50% FASTER
than previous generation DGSHAPE wet mill
6-STATION AUTOMATIC TOOL CHANGER (ATC)
for uninterrupted production
Newly Designed
NOZZLES AND COOLANT TANK
for greater flow and capacity
DUAL FILTERS
require replacement less often, saving cost and time
Brand new burs offer
GREATER STABILITY & FINE MILLING QUALITY
Enhanced User Experience
New Ethernet LAN Connectivity
Access your device and manage your milling, anywhere in the lab or office.
Upgraded V-Panel
Complex controls are replaced with an easy interface to monitor milling jobs and tool life.
CAM Software Included
Easy-to-use, open architecture CAM software accepts all STL files and supports the milling of relevant materials.
Specifications
| Millable material | Glass ceramics, Composite resin, PMMA | |
| Loadable workpiece shape | Width | Maximum 40 mm |
| Depth | Maximum 20 mm | |
| Height | Maximum 20 mm | |
| Operating speed | 0.24 to 70.9 in./min. (6 to 1,800 mm/min.) | |
| Spindle speed | 15,000 to 60,000 rpm | |
| Rotary axis travel angle | A axis | ±360° |
| Number of burs housed | 6 | |
| Attachable bur | Shank diameter | 3 mm, dedicated milling bur |
| Compatible compressed air | Control Pressure | 0.3 MPA or more |
| Air Capacity | 39 L/min or more | |
| Interface | USB, Ethernet (10 BASE-T/100 BASE-TX automatic switching) | |
| Control command set | RML-1, NC code | |
| Power requirements | AC 100 to 240 V ± 10%, 50/60 Hz (overvoltage category II, IEC 60664-1), 2.1 A | |
| Power consumption | Approximately 190 W | |
| Operating noise | During operation | 70 dB(A) or less (when not cutting) |
| During standby | 48 dB(A) or less | |
| External dimensions | Width x Depth x Height | 19.0 x 22.0 x 23.6 in. (482 x 560 x 600 mm) |
| Weight | 135 lbs. (61 kg) | |
| Installation environment | Indoor use, Altitude | Up to 6,562 ft. (2,000m) |
| Temperature | 41 to 82 °F (5 to 28°C) | |
| Humidity | 35 to 80%RH (no condensation) | |
| Ambient pollution degree | 2 (as specified by IEC 60664-1) | |
| Short-term temporary overvoltage | 1,440 V | |
| Long-term temporary overvoltage | 490 V | |
| Included items | Power cord, USB cable, Roland DG Software Package CD, setup guide, drain hoses, dedicated milling burs (4), detection pin, dummy pin, rotary axis correction jig, ATC magazine correction jig and screw, hexagonal screwdriver, hexagonal wrench, measuring cup, mounting screws (4), milling bur removal jig, coolant tank, waste receptacle, filters (2), regulator with stay and screws (2), maintenance kit, daily maintenance card, 6 mm air hose, coolant additive, MillBox CAM software, Ethernet cable | |
