LEF2-200

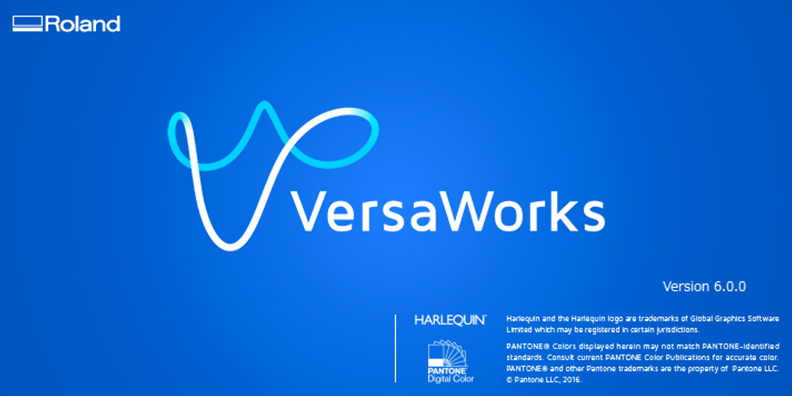

VersaWorks 6
- Harlequin RIP – a Dual Core engine with native 64-bit file processing for perfect printing of transparencies, drop shadows and other effects
- Five own named print queues, five hot folders and unlimited queue settings
- Latest Pantone® and Roland Color spot colour libraries for perfect colour matching, supported by Orange and Green ink
- Printer Color Matching function and VW-S1 Densitometer makes it simple to colour match output over time and across Roland DG printers
- With Job Assistant you add cut lines directly in the RIP – change vector data into cut line data
Productivity Features
 | LED Pointer Set-Up A new LED pointer precisely pinpoints the origin point of your print job. |
 | Roland DG Intelligent Pass Control Controls dot placement between each pass for faster throughput and excellent image quality in all print modes. |
 | BOFA Unit An optional BOFA air filtration system ensures proper ventilation while also functioning as a stand and storage unit. |
 | Roland DG OnSupport Get unattended, worry-free printing with e-mail or smart phone alerts that inform you of low ink or when a job has been completed. |
 | Vacuum Bed An optional vacuum bed holds media perfectly steady to ensure print stability. |
 | RotaPrint Accessory An optional machine attachment enables users to get better print results when printing on cylindrical objects. |
Serie LEF2-200 Specification
| Model | LEF2-200 | |
|---|---|---|
| Printing method | Piezo ink-jet method | |
| Attachable objects to be printed on | Width | Max. 21.2 in. (538 mm) |
| Length | Max. 14.2 in. (360 mm) | |
| Thickness | Max. 3.94 in. (100 mm) | |
| Weight | Max. 11 lb. (5kg) | |
| Maximum printing width / printing length | Max. 20 (width) × 13 (length) in. (508 (width) × 330 (length) mm) | |
| Ink | Type | ECO-UV (EUV, EUV4) 220 ml cartridge |
| Colors | Five colors (cyan, magenta, yellow, black, and white) Five colors (cyan, magenta, yellow, black, and white) and primer Six colors (cyan, magenta, yellow, black, white, and gloss) | |
| Ink-curing unit | Built-in UV-LED lamp | |
| Print resolution (dots per inch) | Max. 1440 dpi | |
| Distance accuracy* | Error of less than ±0.3% of distance traveled or ±11.8 mil (±0.3 mm), whichever is greater. | |
| Connectivity | Ethernet (10BASE-T/100BASE-TX, automatic switching) | |
| Power-saving function | Automatic sleep feature | |
| Power requirements | AC 100 to 240 V ± 10%, 1.8 A, 50/60 Hz | |
| Power consumption | During operation | Approx. 149 W |
| Sleep mode | Approx. 13 W | |
| Acoustic noise level | During operation | 60 dB (A) or less |
| During standby | 49 dB (A) or less | |
| Outer dimensions | 47.3 [W] × 37.9 [D] × 21.6 [H] in. (1,202 (W) × 962 (D) × 549 (H) mm) | |
| Weight | 242.5 lb. (110 kg) | |
| Environment | During operation | Temperature: 68 to 89.6°F (20 to 32°C) (71.6°F (22°C) or higher recommended), Humidity: 35 to 80% RH (no condensation) |
| Not operating | Temperature: 41 to 104°F (5 to 40°C), Humidity: 20 to 80% RH (no condensation) | |
| Included items | Power cord, software RIP, cleaning liquid, drain bottle, manuals, etc. | |
* Temperature: 25°C (77°F), Humidity: 50% RH
This device is capable of printing on a wide variety of substrates. However, the print quality or the ink adhesion may vary according to the substrate used and it is strongly recommended to test the substrate for compatibility to ensure optimal print results.
Vaporized components may slightly irritate the eyes, nose and/or throat during and following printing with this product. If continuously printing in a closed space, the density of volatile compositions will accumulate and may irritate the eyes, nose and /or throat. Roland DG strongly recommends that you install a ventilation system and use this product in a well-ventilated room. For more information, please contact your local distributor or dealer.
| Operating System | Windows® 10 (32/64-bit), Windows® 8.1 (32/64-bit), Windows® 7 Ultimate / Professional (32/64-bit) |
|---|---|
| CPU | Intel® Core™ 2 Duo, 2.0 GHz or faster recommended |
| RAM | 2 GB or more recommended |
| Video card and monitor | A resolution of 1,280 x 1,024 or more |
| Free hard-disk space | 40 GB or more recommended |
| Hard-disk file system | NTFS format |
| Optical drive | DVD-ROM |
| Other | Internet connection recommended |
