Description
The Ultimate in High-Volume,
High-Impact Print Production

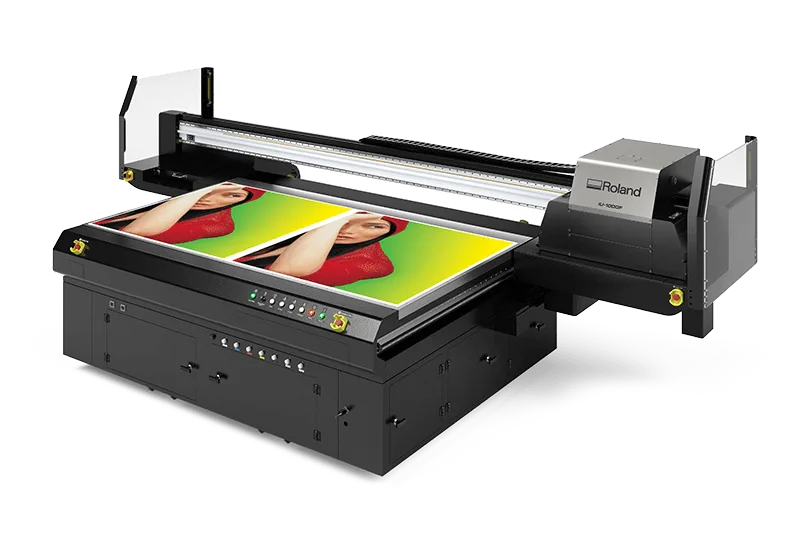

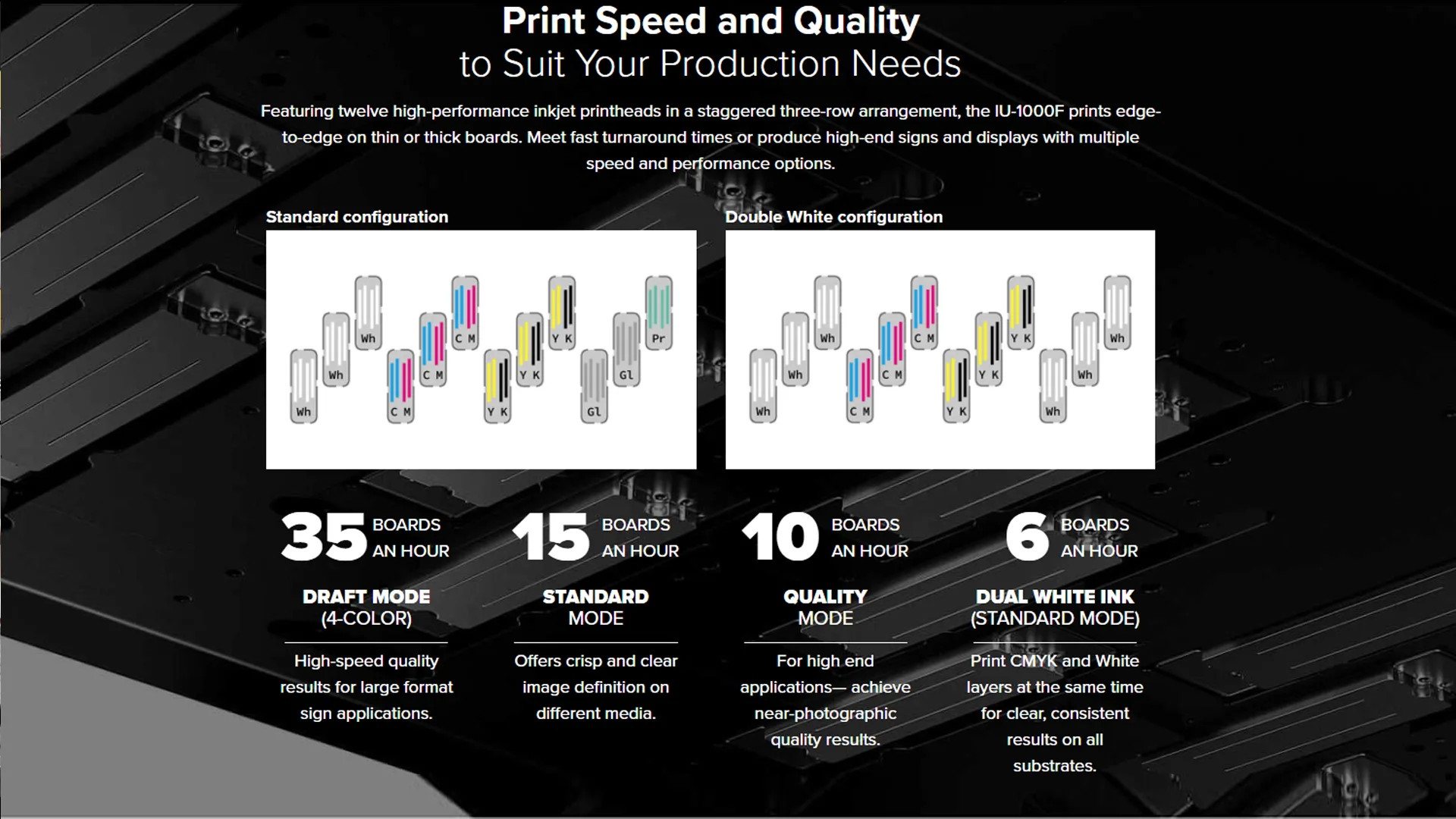

Built tough for non-stop print production, you can build your sign and graphics business around the IU-1000F large format flatbed printer. Featuring high-resolution printing with banding prevention, twelve print heads, 1,280 nozzles per unit, and image results up-to 635 x 1,800 dpi, it offers fast, high-volume print production with high-impact graphic results.
Compatible with hundreds of substrates, ramp-up your UV printing speed, volume and profit.
Productivity Features
 | Easily manage your machines movements, speed, voltage, head cleaning and more from your desktop with the Roland DG Print Control Center. |
 | Includes a premium RIP software package with intuitive tiling, scaling, cropping and many more essential features. |
 | Offers a smooth operation and performance with one-touch, automated daily printhead cleaning— avoid losing valuable print time. |
 | Low odor, low chemical emission inks and a “human proximity sensor” create a safe machine environment for flatbed operators. |
 | Features a media ionizer to reduce static and ensure ink-firing accuracy on materials like corrugated boards that generate a lot of static. |
 | Print one large board or print on multiple boards at the same time with the production versatility of the IU-1000F. |
Specifications
| Printing method | Piezo ink-jet method | |
|---|---|---|
| Media | Maximum size | 98.8 × 51.5 in. (2,510 × 1,310 mm) |
| Maximum thickness | 4.33 in. (110 mm) | |
| Maximum weight | 99 lbs/m2 (45 kg/m2) | |
| Maximum printing area | 98.4 (width) × 51.1 (length) in. (2,500 × 1,300 mm) | |
| Ink | Type | UV Curable Ink (UE, US) |

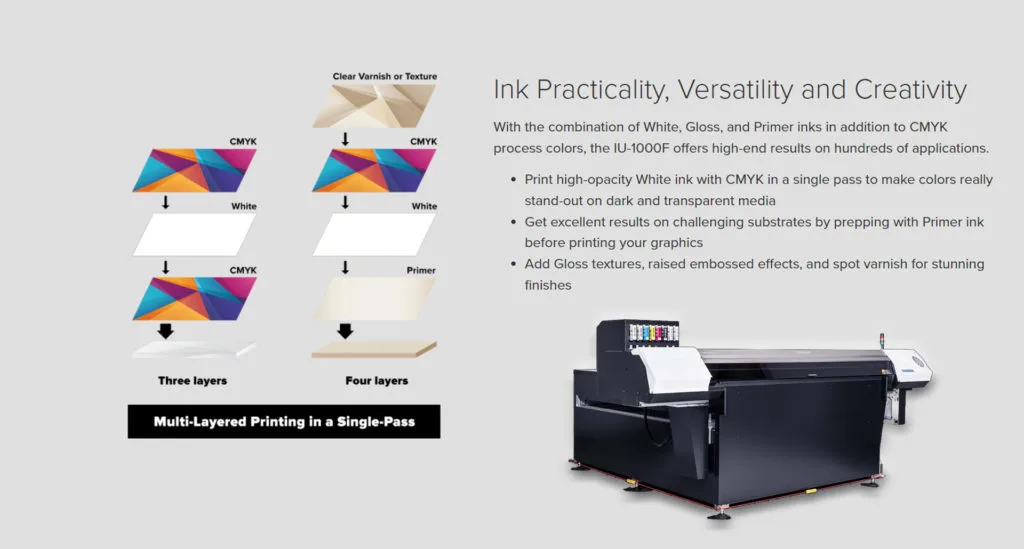

| Color | Six colors (cyan, magenta, yellow, black, white, and gloss) and primer | |
| Ink bottle capacity | CY, MG, YE, BK, GL, PR: 1,000 ml WH: 900 ml (US-WH), 850 ml (UE-WH) | |
| Ink tank capacity | 2,500 ml per color | |
| Ink curing unit | UV-LED lamp | |
| Print resolution (dots per inch) | Max. 635 × 1,800 dpi | |
| Media vacuum system | Up to four vacuuming areas with adjustable vacuum pressure | |
| Connectivity | USB 3.0 | |
| Power requirements | EMEA 25A 3-phase 400 V NA/JPN 30A 3-phase 220 V | |
| Dimensions | 189.4 (W) × 86.6 (D) × 62.2 (H) in. (4,812 × 2,200 × 1,580 mm) | |
| Weight | 3,166 lb (1,436 kg) | |
| Environment | Temperature | 59 to 86 °F (15 to 30 °C) |
| Humidity | 40 to 80 % | |
| Included items | USB cable, paper towel, cleaning kit, CD manuals, software installation CD, etc. | |
| Acoustic noise level | 75 dB (A) or less | |
This device is capable of printing on a wide variety of substrates. However, the print quality or the ink adhesion may vary according to the substrate used and it is strongly recommended to test the substrate for compatibility to ensure optimal print results.
| Print control (bundled) | OS | Windows® 7/10 (64 bit) |
|---|---|---|
| CPU | Intel® Core™ i5, 2 GHz or more | |
| RAM | 8 GB or more | |
| Video card and monitor | A resolution of 1,152 × 854 with 16 bit color or higher | |
| HDD | Install space 1 GB or more Working space 100 GB |
