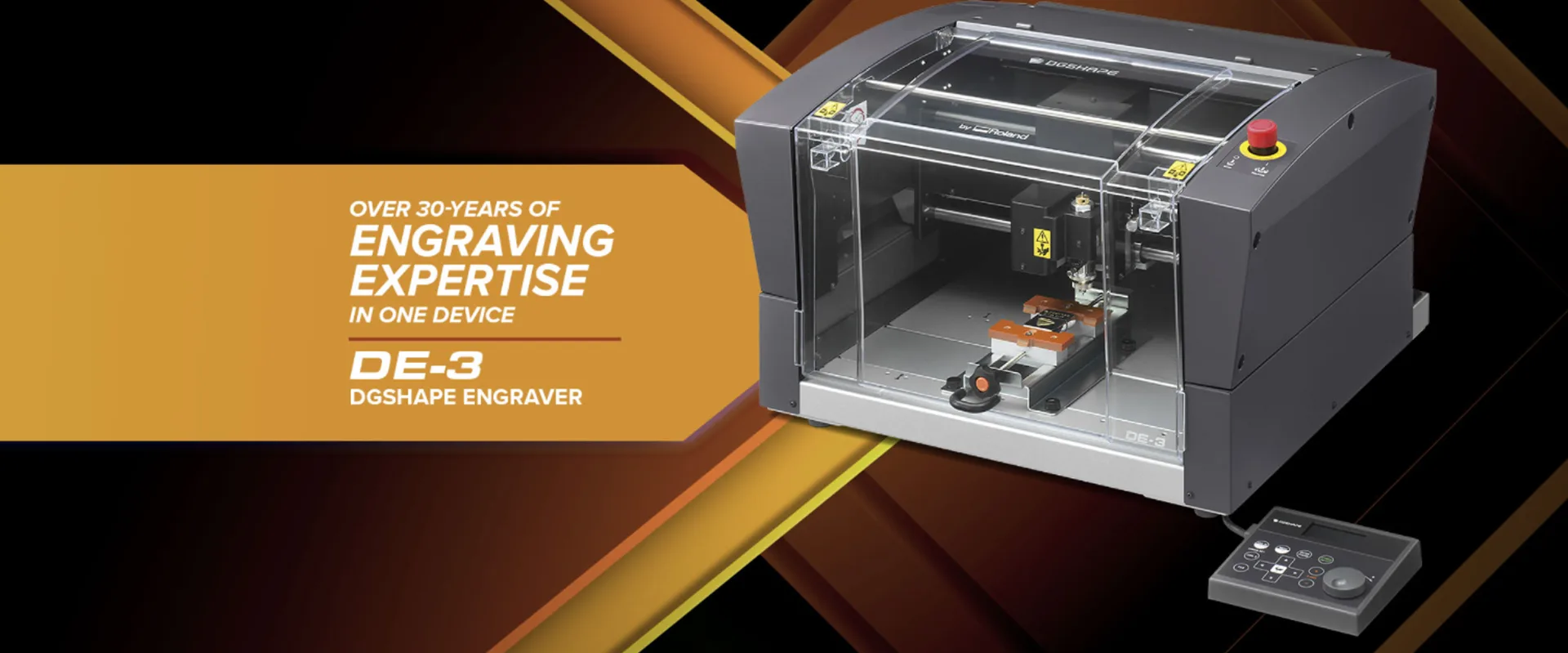

DGSHAPE DE-3 Desktop Engraver

$5,999.00

DGSHAPE DE-3 Desktop Engraver

Intelligent and Intuitive Engraving for Today’s User

  • Engrave onto a huge range of giftware, signage, trophies, tools and industrial products

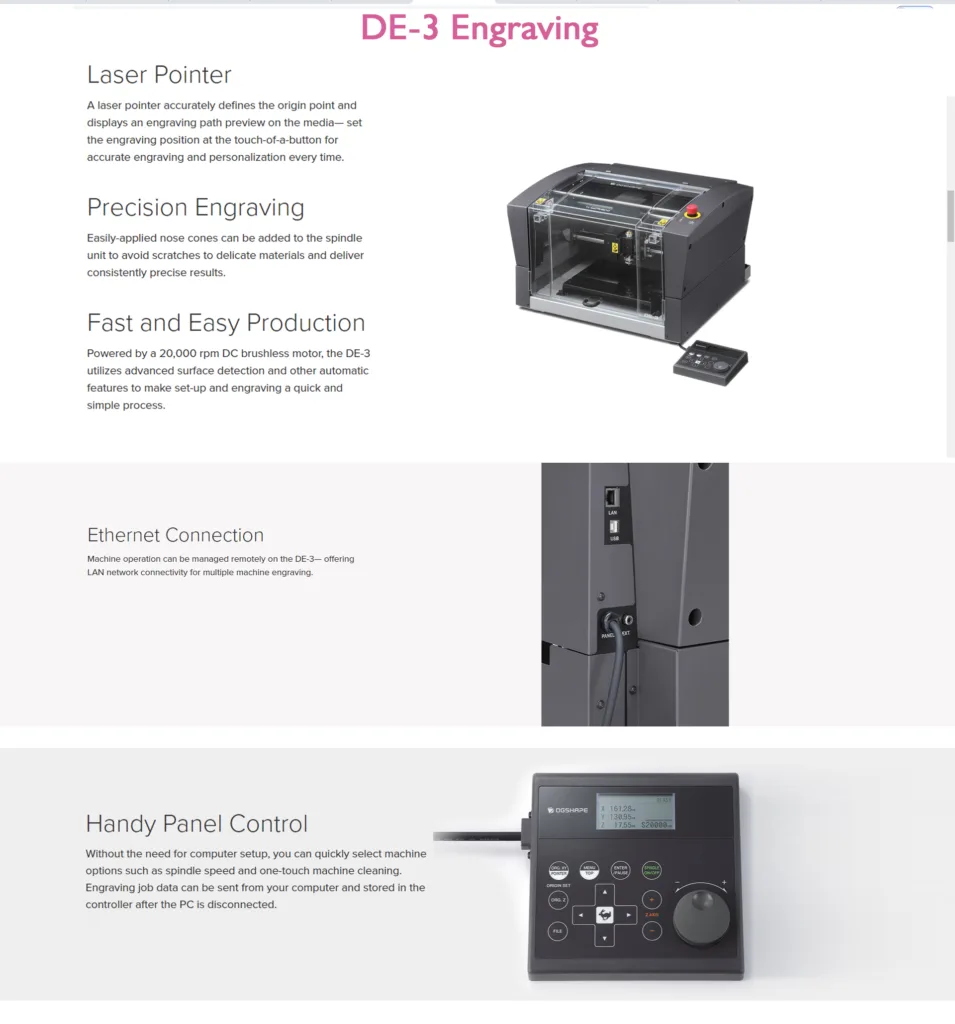

  • Laser pointer for quick set-up and easy production
  • Easily-applied nose cones for non-scratch precision
  • Ethernet connection with LAN network connectivity

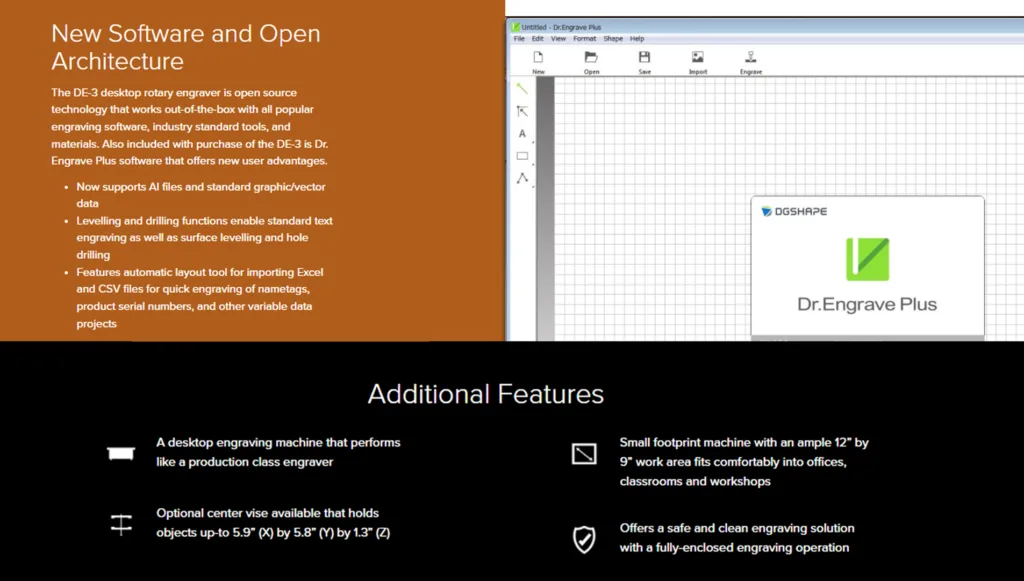

  • Includes new Dr. Engrave Plus software
Compare
Categories: ,

Description

Discover More Applications with DE-3 Engraving

Effortlessly scribe and engrave onto a huge range of giftware, signage, trophies, tools and industrial products. Personalize brass, aluminum, copper, plastic engraving blanks, wooden items and more, with the speed, precision and ease of the powerfully compact DE-3.

Specifications 

DE-3
 Work table size 305mm x 230mm
12.0079in x 9.05512in
Maximum Work Area (Work Envelope)12” (X) x 9.1” (Y) x 1.6” (Z)
305 mm (X) x 230 mm (Y) x 40mm (Z)
XYZ Axis Drive SystemStepper motor, 3-axis simultaneous control
Operating SpeedXY axis:0.1 ~ 60 mm/sec.
Z axis:0.1 ~ 30mm/sec.
Software Resolution0.004” (0.01 mm) /step
Mechanical ResolutionXYZ-axis:0.00125 mm/step
Spindle MotorBrushless DC Motor
Spindle Speed5,000 ~ 20,000 rpm
Tool LoadingCutter Holder, Collet Type
Maximum Material Thickness40 mm(38 mm when using the nose cone)
ConnectionUSB
Ethernet(10 BASE-T/100 BASE-TX)
Machine LanguageRML-1
Power SupplyVoltage and FrequencyAC 100V – 240V ± 10%、50/60Hz(Overvoltage category: Category Ⅱ, IEC60664-1)
Rated Current1.0 A
Power Consumption80 W
Operating NoiseWhile Operating:60 dB(or less)
Standby:40 dB(or less)
External Dimensions2’02” (W) x 1’9″ (D) x 1’2″ (H)
(616 mm (W) × 587 mm (D) × 390mm (H))
Machine Weight75 lbs (35 kg)
Installation EnvironmentIndoor use, altitude:2000 m or less
Temperature5 to 40 °C
Humidity35 to 80% (no dew condensation)
Environment pollution degree:2
Bundled Accessories“Power cord, power adapter, USB cable, nose cone unit (resin / metal components), nose unit set screw (fixing screw, spring), spare set screw (for cutter holder) , Solid collet (∅ 3.175 mm), spanner wrench, hex wrench, hex driver, adhesive sheet, dust collector adapter, DGSHAPE Software Package CD, Setup Guide”
