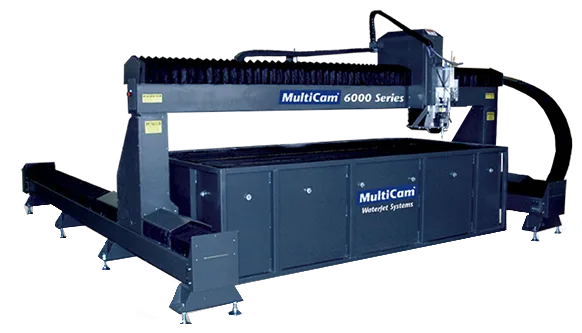

6000 Series CNC Waterjet


  • Digital Brushless AC Servos provide high-speed contouring
  • Fully programmable retract between cuts
  • User-friendly MultiCam Controller
  • Standard Ethernet interface with DNC file system with unlimited file size transfer capabilities.
  • Material Database accessible via hand-held keypad
  • Modular X-axis beams are made from heavy tubing with machined bearing references
  • Massive 35mm linear bearings
  • Helical rack and pinion
  • High precision planetary gearboxes with 1 arc minute backlash and 5 year warranty.
  • All axis are environmentally protected by bellows
  • Single or multiple head configurations available
  • Fast switching between pure water and abrasive cutting
  • Tool-free, hand tightening abrasive nozzle design
  • Tighter water jet stream for increased cutting speed
  • Stress-relieved heavy-duty all steel construction.


6000 Series CNC Waterjet

Affordable, Easy-to-Use

and Perfect for Large Format Cutting


Don’t have a large budget, but do need to make highly accurate cuts for aerospace, automotive, HVAC, marine, stone cutting, or general metal fabrication purposes?

The 6000 Series CNC Waterjet may be just the solution you’ve been looking for. It’s been specially designed to accurately cut a wide variety of materials at high speeds. And of course, since you cut with water, you get an excellent finish without an edge damaged by excessive heat.

All manufacturing’s been done with certified laser calibration equipment, so you don’t have to second-guess the precision level. That also means your customers can count on high work quality too, which means they’re happier.

Modular base rails have been made from ½” thick structural tubing. This means you have an extremely rigid cutting base, which nearly eliminates vibration and keeps your cutting quality high. The 6000 Series CNC Waterjet also runs much quieter (and especially so at higher speeds) than a rack-and-pinion system because of the Alpha gearboxes and precision manufacturing the machine frame.

The helical rack also has many more engaged teeth than your standard straight system, and that helps the CNC Waterjet accelerate faster and cut more accurately. The rapid traverse moves so quickly that your customers will even notice if they stop by to see you working in action.

Add on top of this MultiCam’s EZ control system, which does just like it sounds, and you have a winning combination for quality, accuracy, and consistency.


  • MultiCam EZ Control® and EZ Suite® software
  • All-steel, stress-relieved, heavy-duty construction
  • Dual-side, brushless, digital AC servo drives
  • Fully programmable retract between cuts
  • Material database
  • Integrated PC with standard Ethernet interface and 12 MB memory for unlimited file size transfers
  • Integrated polyurethane machine bellows
  • Fast transition between pure water and abrasive cutting
  • Weir settling tank and sump pump
  • Full range of KMT intensifiers
  • Tool-free, hand tightened abrasive nozzle design
  • Precision machined and stress-relieved modular base rails


  • Single or dual abrasive head assemblies
  • Up to four pure water heads
  • Pneumatic drill
  • Chiller for intensifier
  • Abrasive removal systems
  • Closed-loop filtration system
  • Air ballast water-leveling system
  • Additional modular rail sections for long machine lengths


  • 35mm linear bearing rails with stainless spring steel strip covers
  • Z-axis clearance: 10”
  • Z-axis travel: 8”
  • Cut speed: 1,500 IPM
  • Rapid traverse: 2,100 IPM
  • Repeatability: +/- 0.001”
  • Drive system X and Y axis: helical rack and pinion
  • Precision planetary gearboxes
  • Abrasive feeder/hopper system


  • Steel
  • Stainless steel
  • Aluminum
  • Brass
  • Bronze
  • Copper
  • Titanium
  • Concrete/cement
  • Stone
  • Granite/marble
  • Rubber
  • Plastics


  • Aerospace machining
  • Metal fabrication
  • Stone cutting
  • Job shops
  • Automotive parts manufacturing
  • Marine fabrication
  • HVAC


  • Working area: 80” x 145” to 180” x 145”
  • Rapid traverse: 2,100 IPM
  • Repeatability: +/- 0.001”
