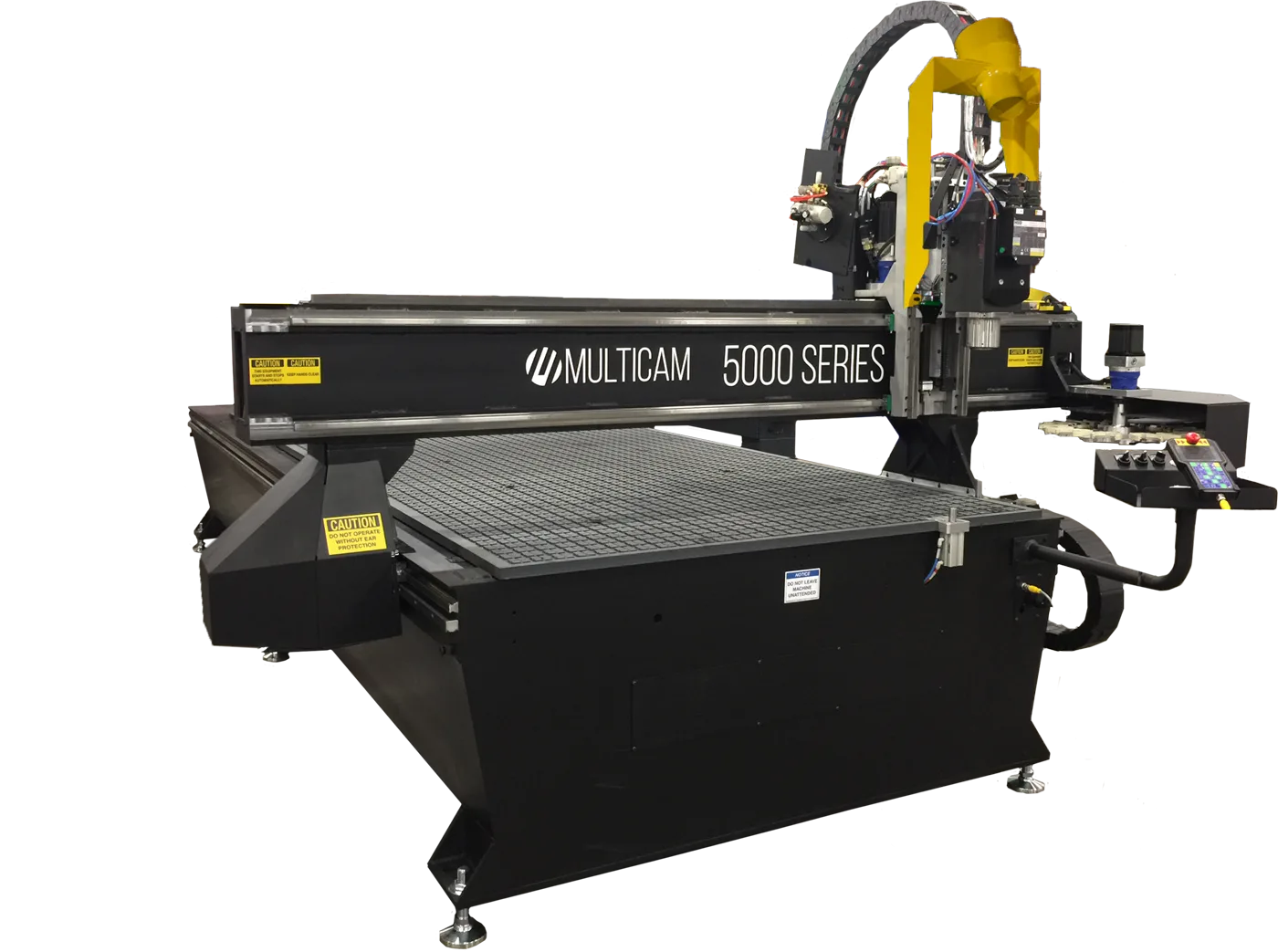

5000 SERIES CNC ROUTER
Maximize Production and Maintain Quality
The 5000 Series is our mid-size CNC router. With a 1,800 IPM cut speed, you get a fast and efficient cut. A 3,000 IPM rapid traverse means this router moves quickly enough to keep your productivity high. And, with a consistently repeatability of just 1/1000th of an inch, your cutting accuracy always stays high too.
Compared to the 7000 Series, the 5000 Series CNC router comes with fewer customizable options. It also has a more compact working area that fits well in smaller workplaces. It has the same amount of power as the 5000 Series, but is more powerful than both the 3000 and 1000 Series. It also has a faster rapid traverse and cutting speed.
Since it’s made completely of steel, the 5000 Series remains durable through the toughest of workplace conditions. You’re best off using it for woodworking, non-ferrous metals, plastics, and sign making. A robust 12 MB of memory means you can easily store and transfer programs, which helps keep your productivity high.
The smaller working area with rapid traverse speeds and precise repeatability makes the 5000 Series a great fit for small production facilities
STANDARD FEATURES
- MultiCam EZ Control® and EZ G-Code™ software
- Heavy, all-steel gusseted plate frame construction
- High-speed three-axis motion-control system
- 12 MB memory with unlimited file size transfers
- Brushless digital AC servo drives
OPTIONS
- Automatic 12-position rotary tool changer and auto tool calibration
- MultiCam CNC Knife with optional cutting heads
Z-axis clearance options: 12” or 16”
SPECIFICATIONS
- 25mm and 35mm linear ball-bearing profile rails
- Z-axis clearance: 8”
- Cut speed: 1,800 IPM
- Rapid traverse: 3,000 IPM
- Repeatability: +/- 0.001”
- Drive system X and Y-axis: helical rack and pinion
- Drive system Z-axis: ball screw
- MultiVision™ Digital Registration System
MATERIAL CUT
- Wood
- Plastics
- Non-ferrous metals
- Composite materials
APPLICATIONS
- Woodworking
- Non-ferrous metal production
- 3-D signs and graphic applications
BASIC INFORMATION
- 5.5 – 20 HP
- Working area: 50” x 50” to 120” x 242”
- Rapid traverse: 3,000 IPM
- Repeatability: +/- 0.001”
- Standard Work surface: 1” phenolic
